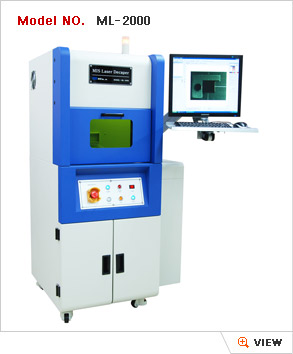

- Automatic laser decapsulation system
- All types of semiconductor package can be removed
- Any material(Au, Cu, Al) of wire part and 2nd bonding area   can be opened
- Effective decapsulation solution for Cu wire chip : Minimize   the damage on Cu wire by chemical etching after laser   operation
- A few hundred microns of EMC on die surface can be   opened with chemical etching(by manual or MIS Wet Etch :   Minimal acid use)
- Easy, simple, fast and safe operation
     > Vision camera provides real time image
     > User can set the decap area by mouse drag / numerical         value input
     > User can see laser decapsulation process & result         on monitor screen
     > Superimposing X-ray image on real-time sample picture         is available
     > Auto door lock : System door is not opened during         laser operation
     > Automatic Z axis adjustment by PC program
- User can observe the operation process through the   window(protected from laser radiation)
- Repetitions made simple using recipe files
- Fume & Dust can be exhausted (Option: Fume & Dust   collector)
